The range is built around a single question: what has to stay inside the pack, and what must not get in. Oxygen, moisture, light, odour, mechanical load.

The principle

The material is specified against the line

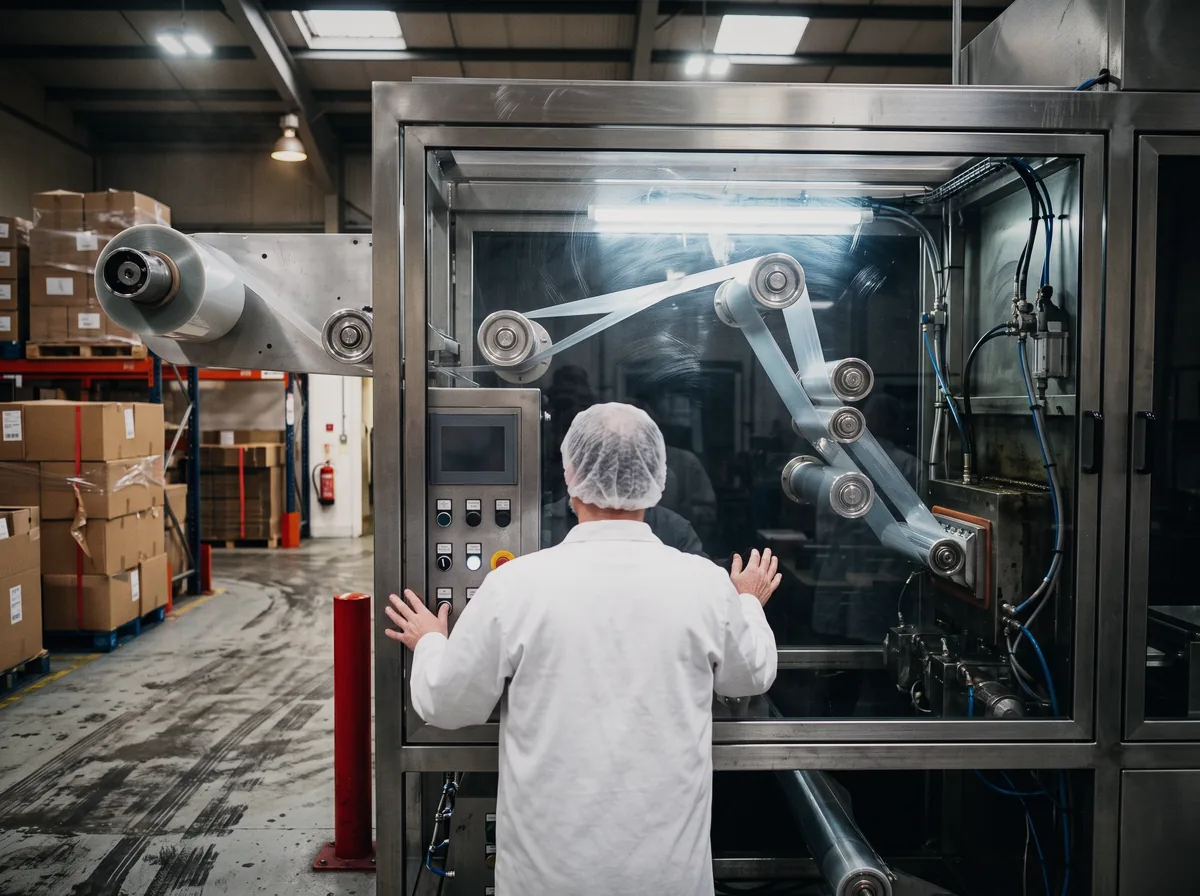

Before we propose a material we ask about the thermoformer, the web width, the forming depth, the sealing temperature and the cycle rate. A catalogue number without those figures is a guess.

Product groups

Six groups

Each group below sets out what we supply and what we need to know in order to specify it. Exact structures, gauges and widths are set per enquiry, because they depend on your line.

FLM01 / 06
Thermoforming and lidding films
The primary pack, and the part that decides shelf life. The bottom web forms the cavity, the top web seals it, and the two have to work as a pair.
Specification
- PA-PE, APET and EVOH barrier structures
- Peelable and weldable lidding films
- Anti-fog layer where required
- Plain or printed · Packoclear private label
TRY02 / 06

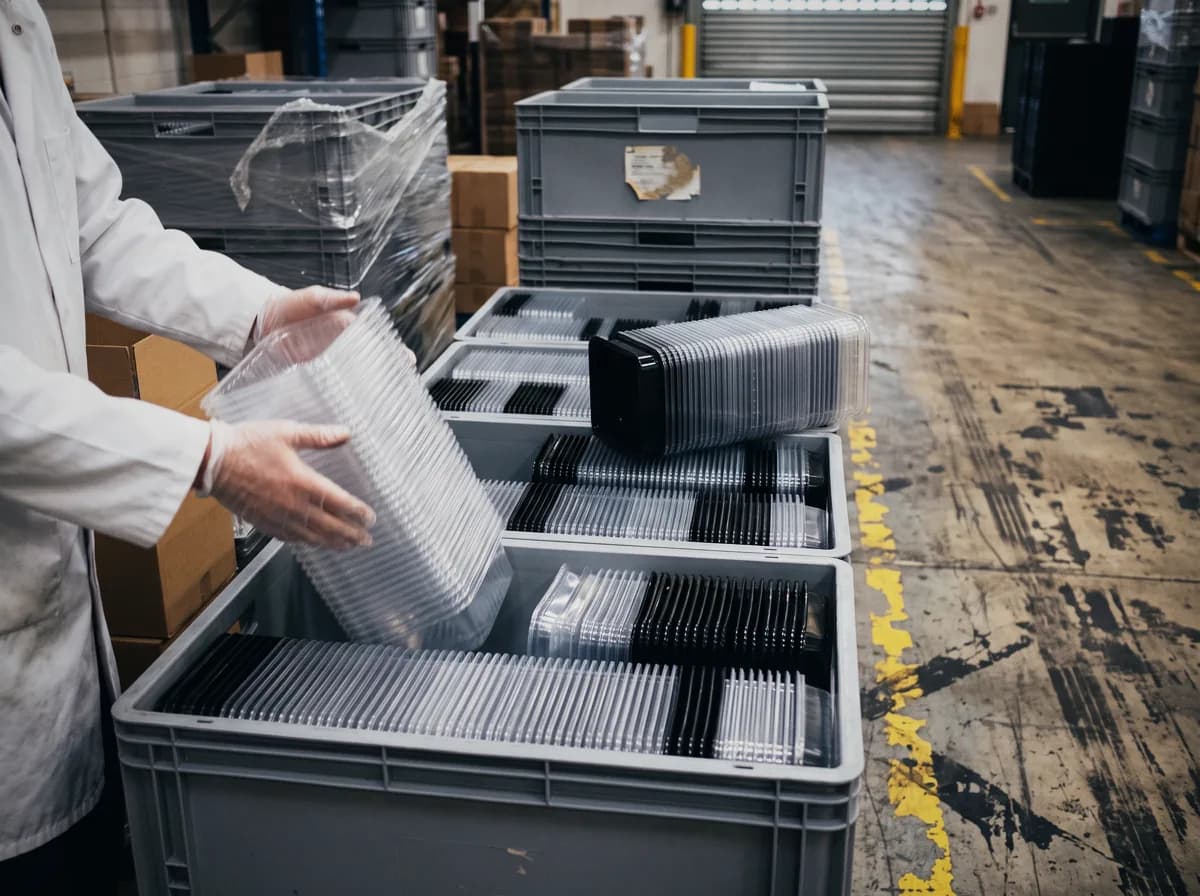

Thermosealable trays
A tray series designed to be closed with lidding film. The tray flange has to match the sealing tool, so tray and film are always specified together.
Specification
- TT001–TT008 series
- MAP and vacuum packing
- Flange matched to the sealing tool
- FV001–FV003 fruit and vegetable series
BAG03 / 06

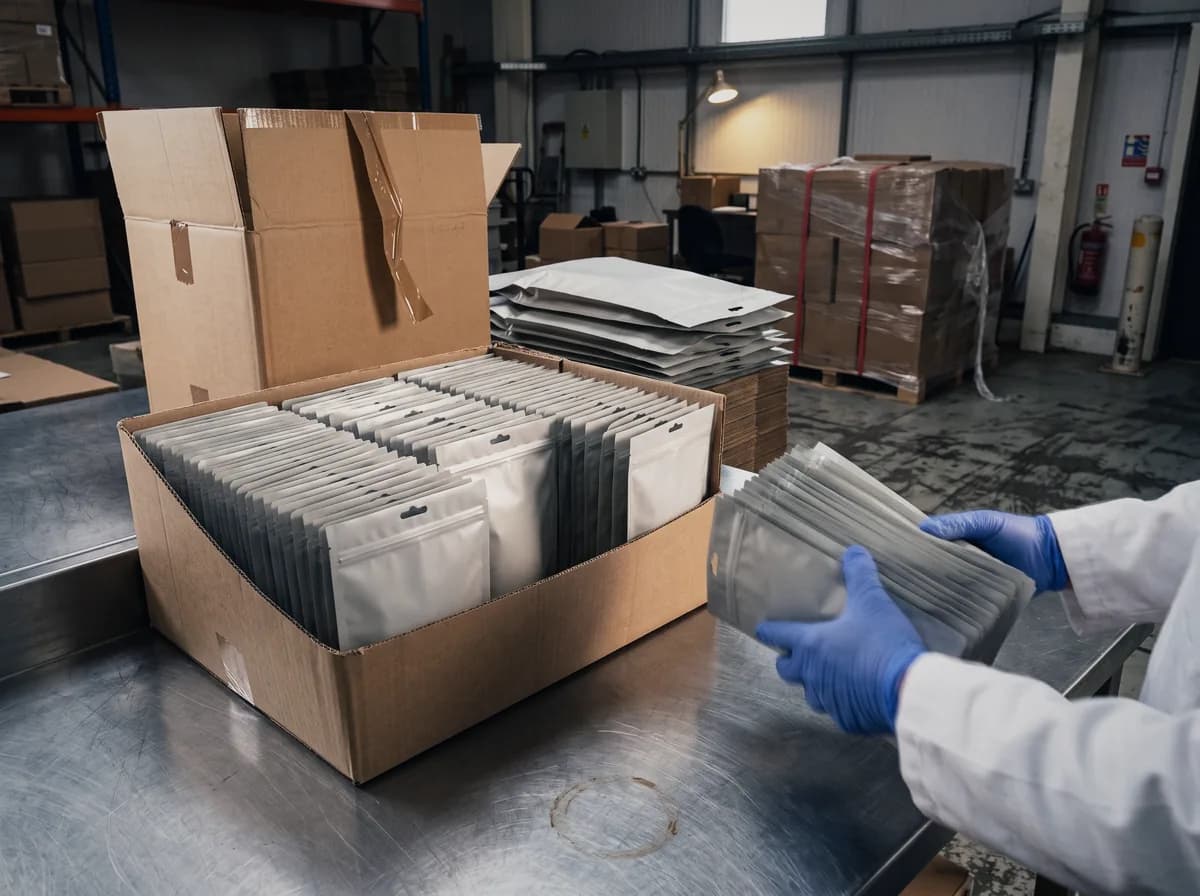

Barrier and non-barrier bags
Where the product is packed off-line, by hand or semi-automatically, the bag remains the fastest answer.
Specification
- Multilayer structure with an oxygen barrier
- Single-layer PE bags without a barrier
- Dimensions and gauge set against the product
- Seal type set against the vacuum equipment
CNT04 / 06

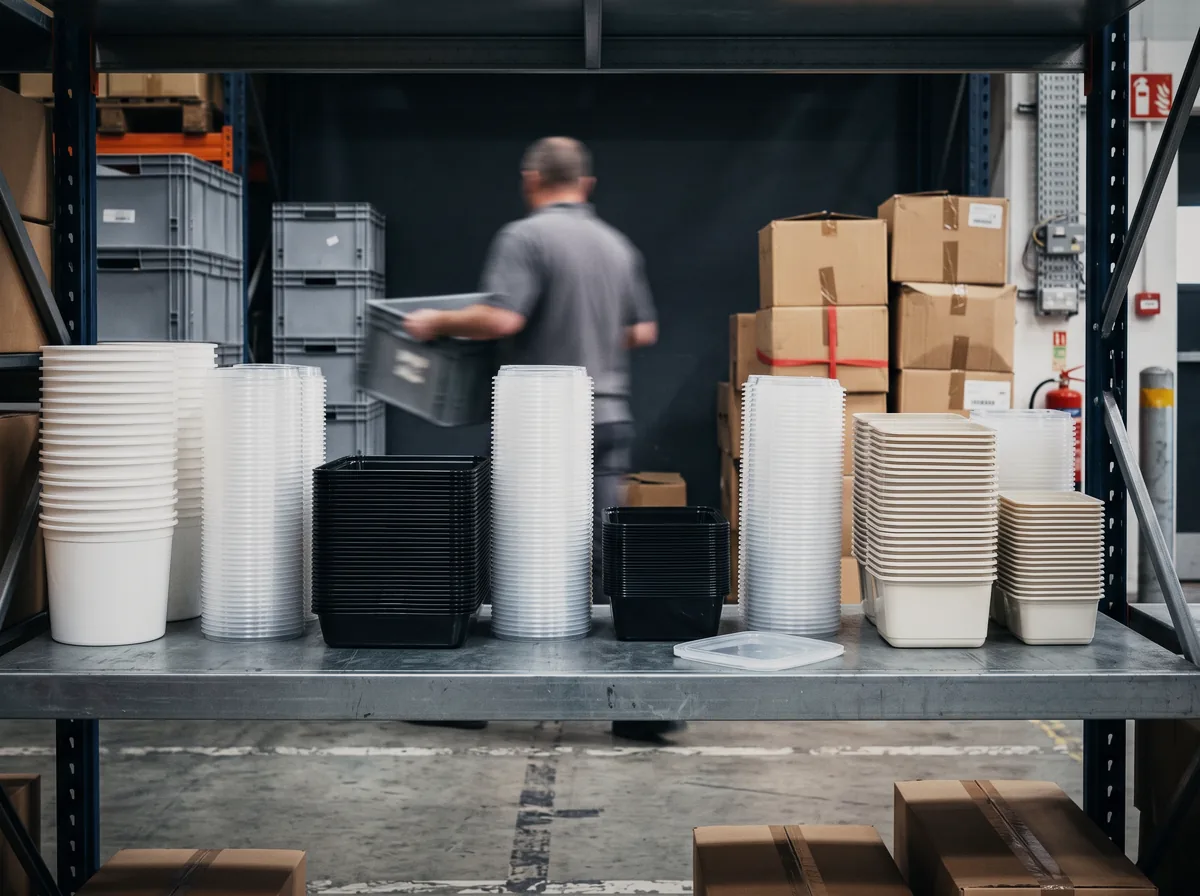

Containers and lids
Three series, for three different product heights and three different opening habits.
Specification
- Bakery containers BC001–BC006
- Flat-lid containers FL001–FL006
- Volumes from 250 ml to 1 L
- Dome-lid containers DL001–DL006
BOX05 / 06

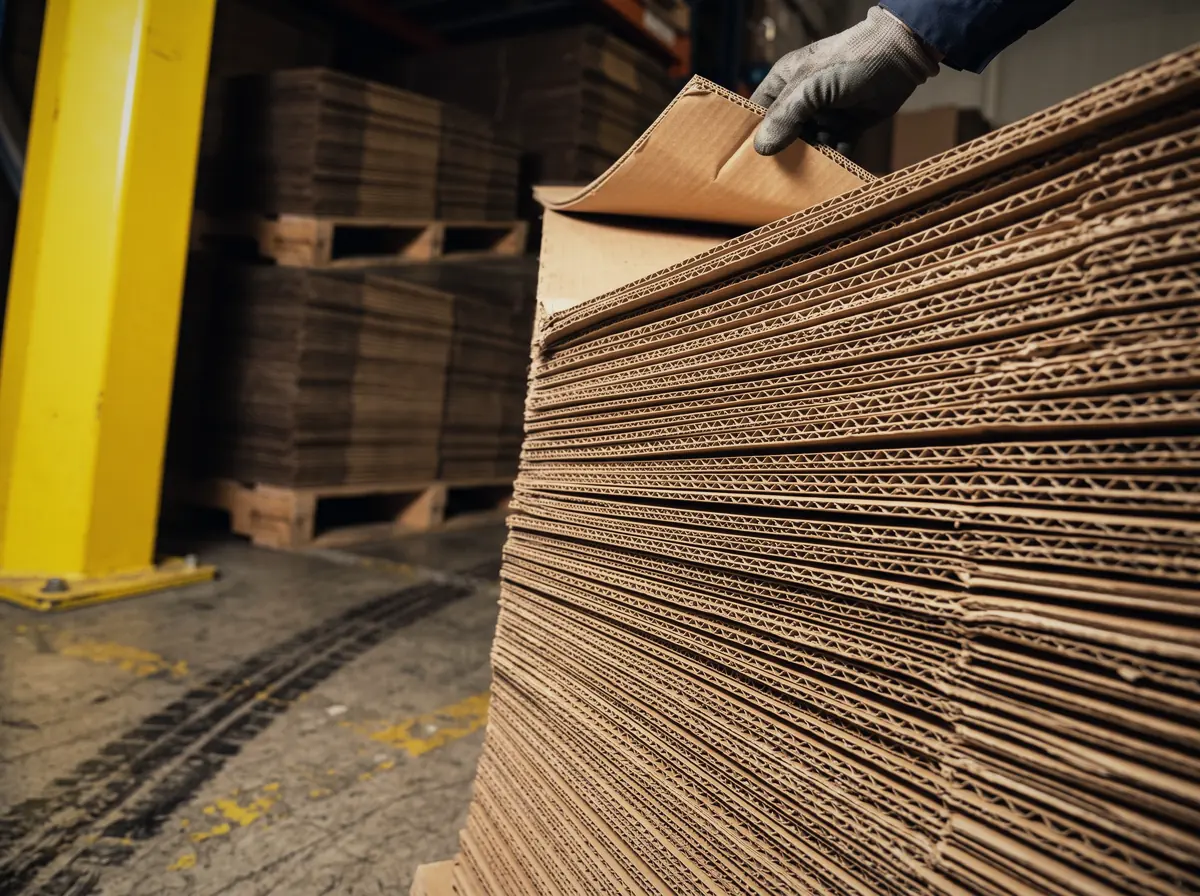

Corrugated boxes
The job of the carton is not the pack – it is the load: how much it holds, how often it is handled, and in what conditions it is stored.
Specification
- Transport boxes rated from 1000 kg
- Board grade set against weight and storage humidity
- Transport cases and shelf-ready boxes
- FSC-certified fibre · certification held by the manufacturer
LBL06 / 06

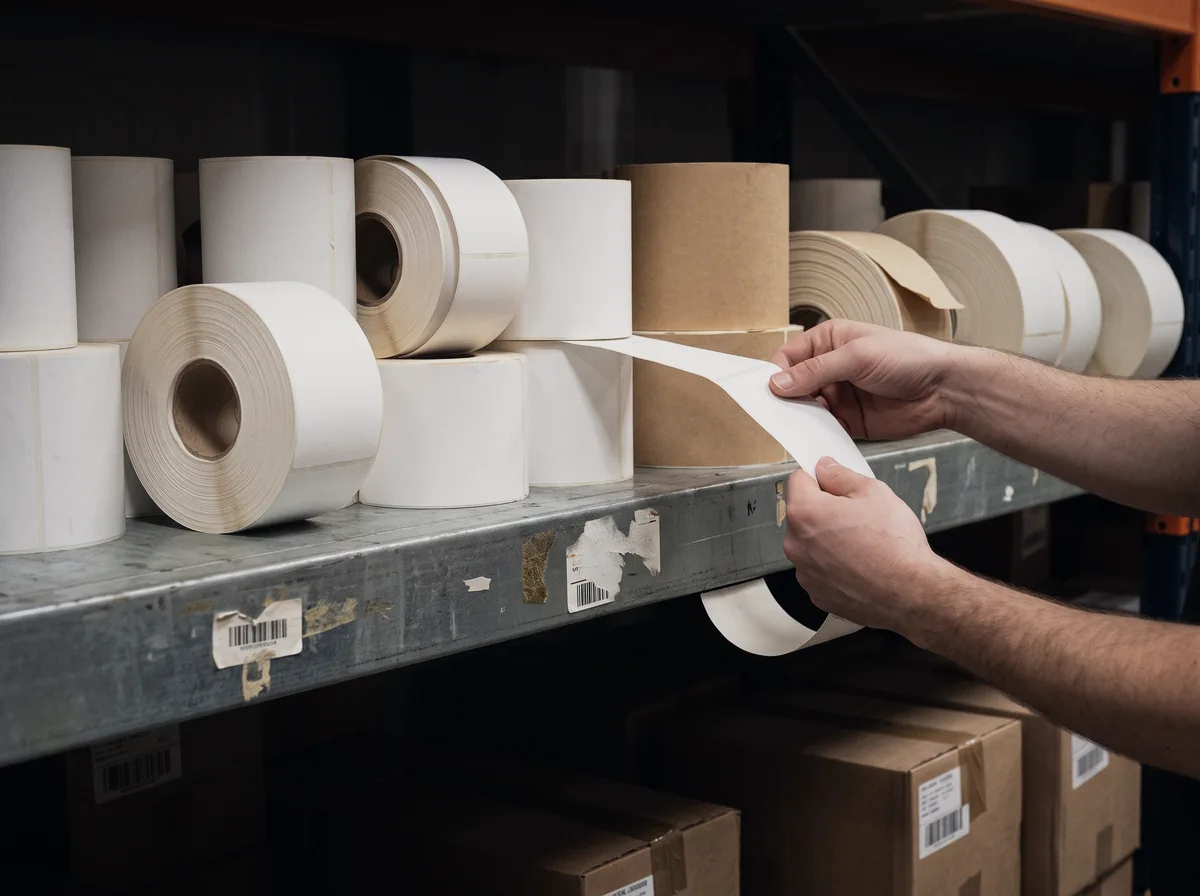

Labels
The label has to stay on the surface in cold and damp conditions, and the print has to stay legible for the whole life of the product.
Specification
- Adhesive labels · adhesive matched to surface and temperature
- Printed labels carrying batch and date data
- Linerless labels
- Facestock and lamination matched to the pack surface

Specification index

One index, five ranges

Search by code, filter by material, depth or footprint, and compare up to four items side by side. Every figure is one the catalogue prints. Where the catalogue publishes nothing, the cell stays empty.

Units

Row density

Showing 29 of 29

One index, five ranges
Compare			ml	mm	mm	Material
	BC001	Bakery containers		200 × 110	30	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 30 mm · 1.18 in Source p. 6
	BC002	Bakery containers		200 × 110	30 / 48	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 30 / 48 mm · 1.18 / 1.89 in Source p. 6
	BC003	Bakery containers		200 × 110	51 / 31	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 51 / 31 mm · 2.01 / 1.22 in Source p. 6
	BC004	Bakery containers		200 × 110	48 / 51	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 48 / 51 mm · 1.89 / 2.01 in Source p. 6
	BC005	Bakery containers		245 × 155		APET
Size 245 × 155 mm · 9.65 × 6.10 in APET Source p. 6
	BC006	Bakery containers		324 × 130	30 / 30	APET
Size 324 × 130 mm · 12.76 × 5.12 in APET 30 / 30 mm · 1.18 / 1.18 in Source p. 6
	DL001	Dome-lid containers	250	120 × 115	55	APET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 250 ml · 8.5 fl oz APET 55 mm · 2.17 in Source p. 8
	DL002	Dome-lid containers	375	120 × 115	73	APET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 375 ml · 12.7 fl oz APET 73 mm · 2.87 in Source p. 8
	DL003	Dome-lid containers	500	130 × 125	73	APET
Size 130 × 125 mm · 5.12 × 4.92 in Capacity 500 ml · 16.9 fl oz APET 73 mm · 2.87 in Source p. 8
	DL004	Dome-lid containers	500	191 × 127	56	APET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 500 ml · 16.9 fl oz APET 56 mm · 2.20 in Source p. 8
	DL005	Dome-lid containers	750	191 × 127	70	APET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 750 ml · 25.4 fl oz APET 70 mm · 2.76 in Source p. 8
	DL006	Dome-lid containers	1,000	191 × 127	75	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 1,000 ml · 33.8 fl oz PP · APET · PET 75 mm · 2.95 in Source p. 8
	FL001	Flat-lid containers	250	120 × 115	45	PP · APET · PET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 250 ml · 8.5 fl oz PP · APET · PET 45 mm · 1.77 in Source p. 7
	FL002	Flat-lid containers	375	120 × 115	63	PP · APET · PET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 375 ml · 12.7 fl oz PP · APET · PET 63 mm · 2.48 in Source p. 7
	FL003	Flat-lid containers	500	130 × 125	63	PP · APET · PET
Size 130 × 125 mm · 5.12 × 4.92 in Capacity 500 ml · 16.9 fl oz PP · APET · PET 63 mm · 2.48 in Source p. 7
	FL004	Flat-lid containers	500	191 × 127	46	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 500 ml · 16.9 fl oz PP · APET · PET 46 mm · 1.81 in Source p. 7
	FL005	Flat-lid containers	750	191 × 127	56	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 750 ml · 25.4 fl oz PP · APET · PET 56 mm · 2.20 in Source p. 7
	FL006	Flat-lid containers	1,000	191 × 127	75	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 1,000 ml · 33.8 fl oz PP · APET · PET 75 mm · 2.95 in Source p. 7
	FV001	Fruit and vegetable trays		185 × 90	40	PP · APET
Size 185 × 90 mm · 7.28 × 3.54 in PP · APET 40 mm · 1.57 in Source p. 5
	FV002	Fruit and vegetable trays		140 × 118	68	PP · APET
Size 140 × 118 mm · 5.51 × 4.65 in PP · APET 68 mm · 2.68 in Source p. 5
	FV003	Fruit and vegetable trays		184 × 141	72	PP · APET
Size 184 × 141 mm · 7.24 × 5.55 in PP · APET 72 mm · 2.83 in Source p. 5
	TT001	Thermosealable trays		187 × 137	16 · 25 · 36 · 50 · 65 · 83	PP
Size 187 × 137 mm · 7.36 × 5.39 in PP 16 · 25 · 36 · 50 · 65 · 83 mm · 0.63 · 0.98 · 1.42 · 1.97 · 2.56 · 3.27 in Source p. 3
	TT002	Thermosealable trays		190 × 144	50 · 63	APET · PP · APET/PE
Size 190 × 144 mm · 7.48 × 5.67 in APET · PP · APET/PE 50 · 63 mm · 1.97 · 2.48 in Source p. 3
	TT003Self-Absorbent	Thermosealable trays		227 × 178	50 · 60	PP
Size 227 × 178 mm · 8.94 × 7.01 in PP 50 · 60 mm · 1.97 · 2.36 in Source p. 3
	TT004	Thermosealable trays		227 × 178	APET · APET/PE: 40 · 50 · 60 · 80 · 110 PP: 10 · 40 · 50 · 60 · 80	APET · APET/PE PP
Size 227 × 178 mm · 8.94 × 7.01 in APET · APET/PE 40 · 50 · 60 · 80 · 110 mm · 1.57 · 1.97 · 2.36 · 3.15 · 4.33 in PP 10 · 40 · 50 · 60 · 80 mm · 0.39 · 1.57 · 1.97 · 2.36 · 3.15 in Source p. 3
	TT005	Thermosealable trays		190 × 144	18	APET · APET/PE
Size 190 × 144 mm · 7.48 × 5.67 in APET · APET/PE 18 mm · 0.71 in Source p. 3
	TT006	Thermosealable trays		230 × 144	50 · 65 · 90	APET · APET/PE
Size 230 × 144 mm · 9.06 × 5.67 in APET · APET/PE 50 · 65 · 90 mm · 1.97 · 2.56 · 3.54 in Source p. 4
	TT007	Thermosealable trays		325 × 265	PP: 40 · 50 · 65 · 80 · 90 · 100 APET · APET/PE: 100	PP APET · APET/PE
Size 325 × 265 mm · 12.80 × 10.43 in PP 40 · 50 · 65 · 80 · 90 · 100 mm · 1.57 · 1.97 · 2.56 · 3.15 · 3.54 · 3.94 in APET · APET/PE 100 mm · 3.94 in Source p. 4
	TT008	Thermosealable trays		350 × 270	60 · 80 · 100	PP
Size 350 × 270 mm · 13.78 × 10.63 in PP 60 · 80 · 100 mm · 2.36 · 3.15 · 3.94 in Source p. 4

Select up to four codes to compare them side by side.

Product codes follow our catalogue numbering. Quote the code in your enquiry if you already know it.

Millimetres and millilitres are the units the catalogue publishes. Inches and fluid ounces are converted figures.

Where a depth is printed as two figures either side of a slash, it is reproduced exactly as the catalogue prints it. The catalogue does not state what each figure represents, and neither do we.

01 / 06FLM

Thermoforming and lidding films

The primary pack, and the part that decides shelf life. The bottom web forms the cavity, the top web seals it. The two have to work as a pair – inside the same sealing-temperature window, at the same cycle rate.

Applications

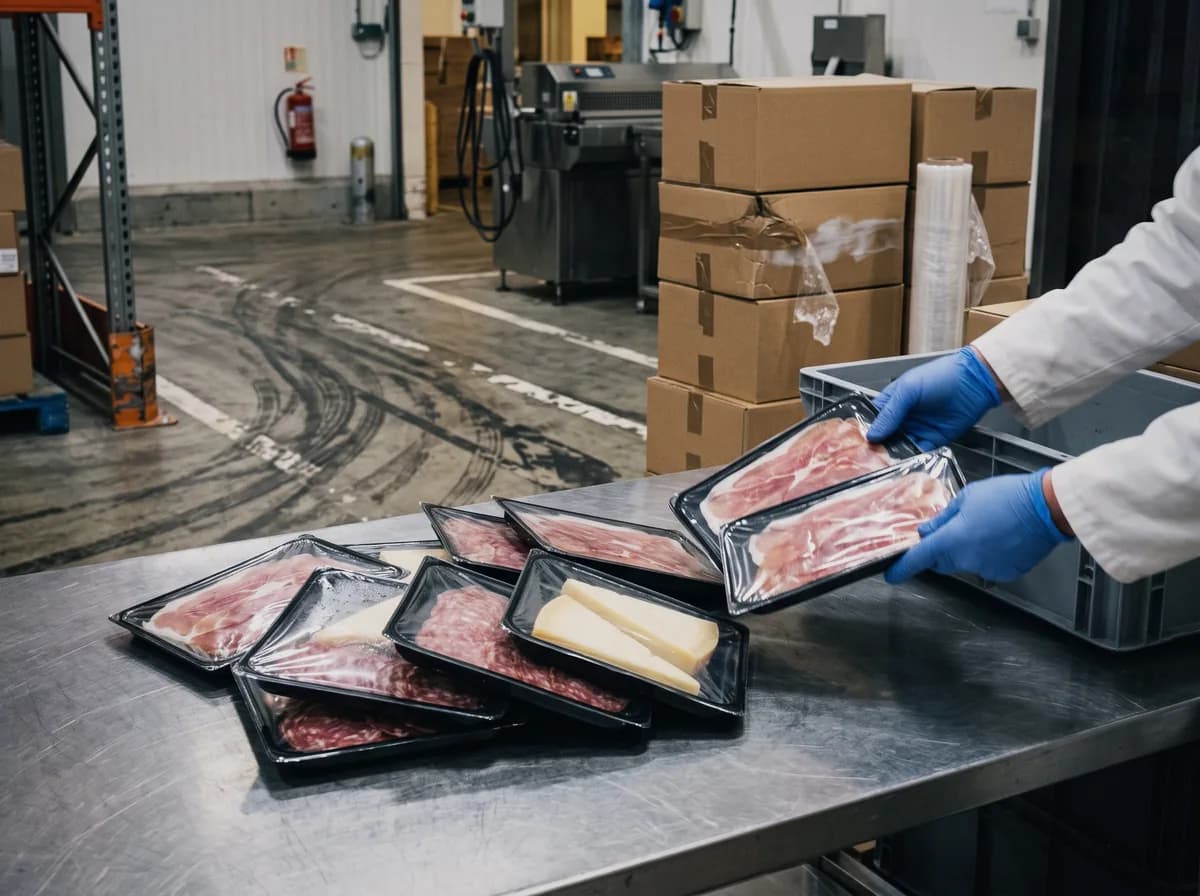

Fresh and processed meat, fish, portioned cheese, prepared meals.

Structures

PA-PE
Polyamide and polyethylene. The polyamide gives puncture resistance and clean thermoforming; the polyethylene provides the sealing layer. The standard choice for fresh and processed meat where reliable deep draws are required.
APET
Amorphous polyethylene terephthalate. A stiffer cavity, high clarity and stable geometry. Used where the pack has to hold its shape on the shelf and present the product well.
EVOH barrier
An ethylene-vinyl alcohol copolymer layer inside a multilayer structure. This is the oxygen barrier that sets achievable shelf life on sensitive products – fresh red meat, cheese, fish. The EVOH layer is specified against the shelf life and storage conditions actually required, not on a “more is better” basis.

PA-PE
PA-EVOH-PE
PA-PP
APET
APET/PE
APET/EVOH-PE

The two films that recur across the whole record

These two specifications are the only ones that recur across the 2024–2026 shipments and in the 2023–2024 certificates of quality. The data below is what the certificate of quality prints, with nothing added to it.

Continuously supplied
APET/PE tight seal S 350 Clear Antiblock
Clear thermoforming base film. Net weight per roll 48–50 kg, standard roll length 200 m.

Continuously supplied
APET/PE/EVOH/p S 220 Black Antiblock
Black base film with an EVOH oxygen barrier. Net weight per roll 30–32 kg, standard roll length 200 m.

Printed on the certificate of quality

Printed on the certificate of quality
Property	Value
Thickness tolerance	± 5 %
Width tolerance	± 1 mm
PE adhesion	≥ 3 N/15 mm
Core diameter	76 mm
Additive	Antiblock

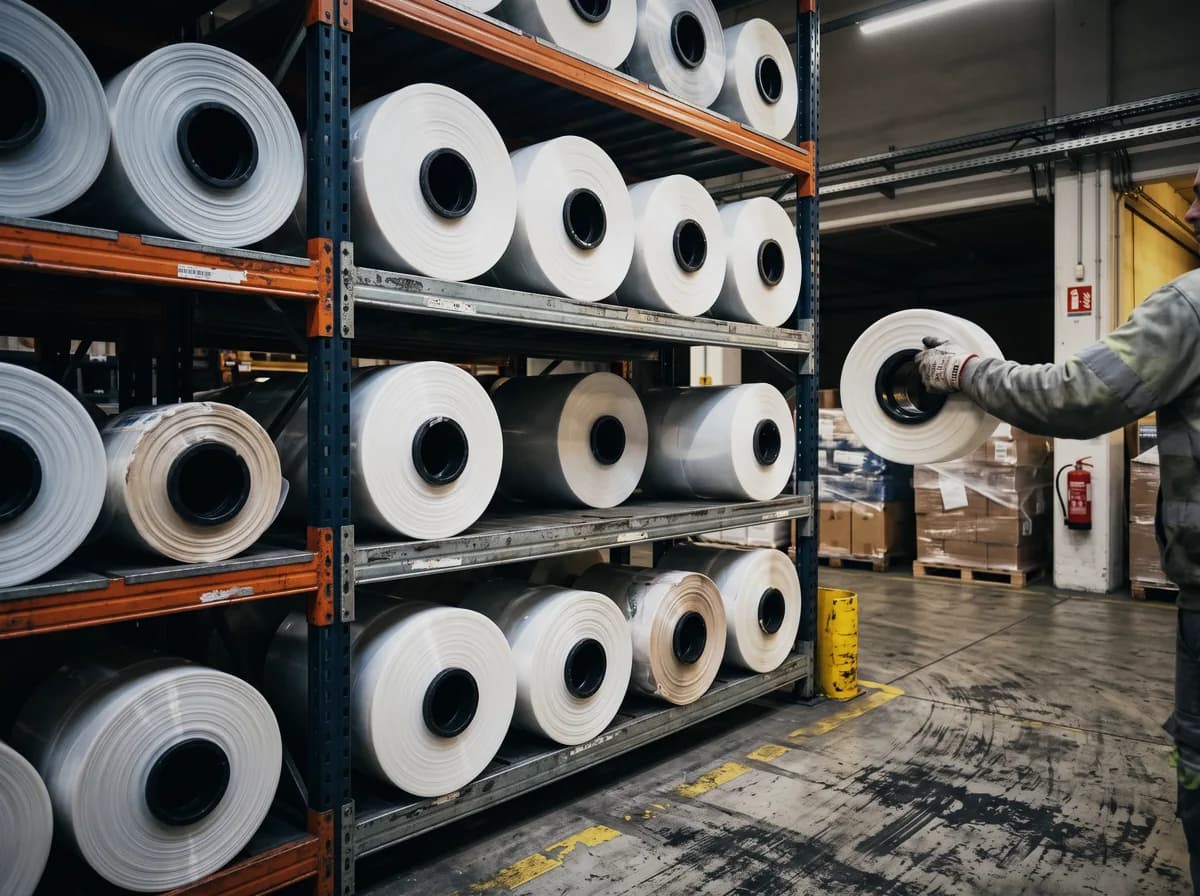

EPAL pallet	1200 × 800 mm · up to 24 rolls, vertical
Warehouse temperature	+5 – +35 °C
Relative humidity	< 65 %
Maximum storage	12 months from date of manufacture

These figures are printed on every certificate of quality for the APET/PE line and therefore hold for both specifications. The APET/PE certificates print no oxygen permeability (OTR), no water-vapour permeability (WVTR) and no sealing temperature – so none appears here.

The film specification register

The films supplied between 2023 and 2026, with the thickness, width and roll length the shipping documents print. Filter by structure, manufacturer, thickness or width, and compare up to four specifications side by side.

Showing 25 of 25

The film specification register
Compare			µm	mm	m
	APET/PE tight seal S 350 Clear AntiblockContinuously supplied	APET/PE	350	552	200	Clear	RETAL Baltic Films
Thickness 350 µm · 13.8 mil Width 552 mm · 21.73 in Roll length 200 m · 656 ft Core diameter 76 mm Net weight per roll 48–50 kg Maximum storage 12 months
	APET/PE/EVOH/p S 220 Black AntiblockContinuously supplied	APET/PE/EVOH	220	550	200	Black	RETAL Baltic Films
Thickness 220 µm · 8.7 mil Width 550 mm · 21.65 in Roll length 200 m · 656 ft Core diameter 76 mm Net weight per roll 30–32 kg Maximum storage 12 months
	APET/PE peel S 350 Clear Antiblock	APET/PE	350	423		Clear	RETAL Baltic Films
Thickness 350 µm · 13.8 mil Width 423 mm · 16.65 in Core diameter 76 mm Maximum storage 12 months
	APET/PE peel S 350 Black Antiblock	APET/PE	350	423	200	Black	RETAL Baltic Films
Thickness 350 µm · 13.8 mil Width 423 mm · 16.65 in Roll length 200 m · 656 ft Core diameter 76 mm Maximum storage 12 months
	APET/PE tight seal S 350 Clear Antiblock	APET/PE	350	422		Clear	RETAL Baltic Films
Thickness 350 µm · 13.8 mil Width 422 mm · 16.61 in Core diameter 76 mm Maximum storage 12 months
	APET/PE/EVOH/p S 280 Black Antiblock	APET/PE/EVOH	280	422		Black	RETAL Baltic Films
Thickness 280 µm · 11.0 mil Width 422 mm · 16.61 in Core diameter 76 mm Maximum storage 12 months
	APET/PE/EVOH/p S 220 Black Antiblock	APET/PE/EVOH	220	420		Black	RETAL Baltic Films
Thickness 220 µm · 8.7 mil Width 420 mm · 16.54 in Core diameter 76 mm Maximum storage 12 months
	APET/PE peel S 220 Black Antiblock	APET/PE	220	422		Black	RETAL Baltic Films
Thickness 220 µm · 8.7 mil Width 422 mm · 16.61 in Core diameter 76 mm Maximum storage 12 months
	APET/PE/EVOH/t S 200 Black Antiblock	APET/PE/EVOH	200	420		Black	RETAL Baltic Films
Thickness 200 µm · 7.9 mil Width 420 mm · 16.54 in Core diameter 76 mm Maximum storage 12 months
	RE-Close APET/PE 350 µ Clear Antiblock	APET/PE	350			Clear	RETAL Baltic Films
Thickness 350 µm · 13.8 mil Width Core diameter 76 mm Maximum storage 12 months
	VAK-TOP EVOH (0,140 × 407)	PA/EVOH/PE	140	407	500	Black	Umaras
Thickness 140 µm · 5.5 mil Width 407 mm · 16.02 in Roll length 500 m · 1,640 ft Grammage 138.2 g/m² Measured 0.14 mm Sealing temperature 125–160 °C
	VAK-T (0,120 × 423)	PA/EVOH/PE	120	423	600	Clear	Umaras
Thickness 120 µm · 4.7 mil Width 423 mm · 16.65 in Roll length 600 m · 1,969 ft Grammage 117.6 g/m² Measured 0.12 mm Sealing temperature 120–150 °C
	VAK-T EVOH (0,250 × 423)	PA/EVOH/PE	250	423	300	Clear	Umaras
Thickness 250 µm · 9.8 mil Width 423 mm · 16.65 in Roll length 300 m · 984 ft Measured 0.25 mm Sealing temperature 140–180 °C
	LP TOP (0,064 × 423) · PET+PE 12/50	PET/PE	64	423	800		Umaras
Thickness 64 µm · 2.5 mil Width 423 mm · 16.65 in Roll length 800 m · 2,625 ft Print colours 5
	LBP (0,054 × 276) · PET+PE-AF 12/40	PET/PE-AF	54	276	1,000		Umaras
Thickness 54 µm · 2.1 mil Width 276 mm · 10.87 in Roll length 1,000 m · 3,281 ft Print colours 3
	LP TOP (0,054 × 420) · PET+PE/EVOH/PE 12/40	PET/PE/EVOH/PE	54	420			Umaras
Thickness 54 µm · 2.1 mil Width 420 mm · 16.54 in
	LP TOP (0,054 × 276) · PET+PE/EVOH/PE 12/40	PET/PE/EVOH/PE	54	276	1,000		Umaras
Thickness 54 µm · 2.1 mil Width 276 mm · 10.87 in Roll length 1,000 m · 3,281 ft
	SUPRAFORM XFF · U000XFF0423/0240-KF	PA/PE	240	423		Transparent	Supravis
Thickness 240 µm · 9.4 mil Width 423 mm · 16.65 in Maximum storage 12 months
	SUPRAFORM XFF · PA/PE Multilayer Film Transparent 0,170	PA/PE	170	423		Transparent	Supravis
Thickness 170 µm · 6.7 mil Width 423 mm · 16.65 in Maximum storage 12 months
	SUPRAFORM XFF · U000XFF0423/0140-KF	PA/PE	140	423			Supravis
Thickness 140 µm · 5.5 mil Width 423 mm · 16.65 in
	SUPRAFORM XFF · PA/PE Multilayer Film Black 0,140	PA/PE	140	420		Black	Supravis
Thickness 140 µm · 5.5 mil Width 420 mm · 16.54 in Maximum storage 12 months
	SUPRAFORM XFF · U000XFF0423/0100-KF	PA/PE	100	423		Transparent	Supravis
Thickness 100 µm · 3.9 mil Width 423 mm · 16.65 in
	SUPRAFORM XFF · U900XFF0407/0160-KF	PA/PE	160	407			Supravis
Thickness 160 µm · 6.3 mil Width 407 mm · 16.02 in
	SUPRAFORM XFF · U900XFF0420/0080-KF	PA/PE	80	420		Black	Supravis
Thickness 80 µm · 3.1 mil Width 420 mm · 16.54 in
	PACKOCLEAR (GLS) 130 · 000GLS0130	PE/EVOH	130				Supravis
Thickness 130 µm · 5.1 mil Width Grammage 123.7 g/m² Maximum storage 12 months

Select up to four codes to compare them side by side.

Every figure in this table is printed on a shipping document, a certificate of quality, a reel label or a manufacturer's datasheet. Where a document prints no value, the cell stays empty – no figure here is computed, rounded, or carried across from a similar product.

Micrometres, millimetres and metres are the units the manufacturers' documents print. Mils (thousandths of an inch), inches and feet are converted figures.

The range observed in supply

Thickness supplied: 54 – 350 µm
Width supplied: 276 – 552 mm
Roll length supplied: 194 – 1,000 m
Core diameter: 76 mmAPET/PE line
EPAL pallet: 1,200 × 800 mmup to 24 rolls, vertical
Maximum storage: 12 monthsAPET/PE and PE/EVOH

These are the bounds recorded in the actual supply documents for 2023 to 2026, not a statement of what can be made. A required thickness and width are confirmed against your enquiry.

Lidding films

We supply both peelable and weldable lidding. Peelable lidding opens by hand without tearing the tray flange, which suits retail. Weldable lidding gives a stronger, non-reopenable bond, which suits transported and heavier products. Anti-fog lidding is available where the product has to stay visible through a chilled cabinet.

PA-PE
PA-EVOH-PE
OPA-PP
OPA/PE
PET-PP
EVOH-PE

What we ask before quoting a film

01Thermoformer make and model
02Web width and forming depth
03The product being packed, its fat and moisture content
04Packing method: vacuum, MAP gas mix, or neither
05Required shelf life and storage temperature
06Indicative annual volume in kilograms or rolls

Private label

Packoclear

Films are supplied plain or printed. The Packoclear private label is used where no manufacturer mark should appear on the film or the roll. Number of print colours, plates and minimum run are agreed per enquiry.

Specification

Specification
Property	Value	Test method
Film thickness	130 µm ± 6 %	ISO 4593
Coefficient of friction	< 0.5	ISO 8295
Oxygen transmission rate (OTR)	≤ 2 cm³/(m²·24 h·bar)23 °C · 0 % RH	ASTM D3985
Water vapour transmission rate (WVTR)	≤ 5 g/(m²·24 h)38 °C · 90 % RH	ASTM F1249

A figure on a technical datasheet only means something once you know the method behind it. Below are the standards against which the properties of the films we supply are measured. These are test-method standards, not company certifications: they define the measurement procedure, they do not confer a quality mark.

Packoclear (GLS)130 µm123.7 g/m²OTR ≤ 2 cm³/(m²·24 h·bar)

Discuss private label

02 / 06TRY

Thermosealable trays · TT001–TT008

A tray series designed to be closed with lidding film. Used for modified-atmosphere (MAP) and vacuum packing – portioned meat, fish fillets, cut cheese, prepared meals. The tray flange has to match the sealing tool, so tray and film are always specified together.

Applications

Portioned meat, fish fillets, cut cheese, prepared meals, fresh produce.

Showing 8 of 8

Thermosealable trays · TT001–TT008
	mm	mm	Material
TT001	187 × 137	16 · 25 · 36 · 50 · 65 · 83	PP
Size 187 × 137 mm · 7.36 × 5.39 in PP 16 · 25 · 36 · 50 · 65 · 83 mm · 0.63 · 0.98 · 1.42 · 1.97 · 2.56 · 3.27 in Source p. 3
TT002	190 × 144	50 · 63	APET · PP · APET/PE
Size 190 × 144 mm · 7.48 × 5.67 in APET · PP · APET/PE 50 · 63 mm · 1.97 · 2.48 in Source p. 3
TT003Self-Absorbent	227 × 178	50 · 60	PP
Size 227 × 178 mm · 8.94 × 7.01 in PP 50 · 60 mm · 1.97 · 2.36 in Source p. 3
TT004	227 × 178	APET · APET/PE: 40 · 50 · 60 · 80 · 110 PP: 10 · 40 · 50 · 60 · 80	APET · APET/PE PP
Size 227 × 178 mm · 8.94 × 7.01 in APET · APET/PE 40 · 50 · 60 · 80 · 110 mm · 1.57 · 1.97 · 2.36 · 3.15 · 4.33 in PP 10 · 40 · 50 · 60 · 80 mm · 0.39 · 1.57 · 1.97 · 2.36 · 3.15 in Source p. 3
TT005	190 × 144	18	APET · APET/PE
Size 190 × 144 mm · 7.48 × 5.67 in APET · APET/PE 18 mm · 0.71 in Source p. 3
TT006	230 × 144	50 · 65 · 90	APET · APET/PE
Size 230 × 144 mm · 9.06 × 5.67 in APET · APET/PE 50 · 65 · 90 mm · 1.97 · 2.56 · 3.54 in Source p. 4
TT007	325 × 265	PP: 40 · 50 · 65 · 80 · 90 · 100 APET · APET/PE: 100	PP APET · APET/PE
Size 325 × 265 mm · 12.80 × 10.43 in PP 40 · 50 · 65 · 80 · 90 · 100 mm · 1.57 · 1.97 · 2.56 · 3.15 · 3.54 · 3.94 in APET · APET/PE 100 mm · 3.94 in Source p. 4
TT008	350 × 270	60 · 80 · 100	PP
Size 350 × 270 mm · 13.78 × 10.63 in PP 60 · 80 · 100 mm · 2.36 · 3.15 · 3.94 in Source p. 4

The TT001–TT008 series covers a range of volumes, depths and compartment layouts. Exact dimensions and compatibility with your sealing tool are confirmed at enquiry stage.

Fruit and vegetable trays · FV001–FV003

Trays for fresh produce, where the priorities are mechanical protection, weight tolerance and shelf presentation. The FV001–FV003 series covers standard retail weight units.

Showing 3 of 3

Fruit and vegetable trays · FV001–FV003
	mm	mm	Material
FV001	185 × 90	40	PP · APET
Size 185 × 90 mm · 7.28 × 3.54 in PP · APET 40 mm · 1.57 in Source p. 5
FV002	140 × 118	68	PP · APET
Size 140 × 118 mm · 5.51 × 4.65 in PP · APET 68 mm · 2.68 in Source p. 5
FV003	184 × 141	72	PP · APET
Size 184 × 141 mm · 7.24 × 5.55 in PP · APET 72 mm · 2.83 in Source p. 5

Further footprints printed in the catalogue

These footprints are printed on the same catalogue page but carry no part code.

Further footprints printed in the catalogue

Further footprints printed in the catalogue
Footprintmm	Depthsmm
275 × 175	40 · 50 · 63 · 95 · 110
190 × 144 · Skin	18
325 × 265 · 3C	50
325 × 265additional depth on TT007	25

No code is invented for them: a code that is not in the catalogue is a code a buyer could not order against. The material columns (PP, APET, APET/PE) on that page are tick marks that cannot be read out of the document, so material availability is stated nowhere here and is confirmed against your enquiry. Also printed on that page: suitable for modified atmosphere packaging (MAP); colour trays and absorbent pads on request.

03 / 06BAG

Barrier and non-barrier bags

Where the product is packed off-line, by hand or semi-automatically, the bag remains the fastest and cheapest answer. The difference between a barrier and a non-barrier bag is not the price – it is how many days the product stays saleable.

Applications

Whole-muscle, cured and smoked meat, cheese, fish, frozen goods.

Barrier bags

Multilayer structure with an oxygen barrier. Intended for vacuum packing: whole-muscle meat, cured and smoked products, cheese, fish. The barrier slows oxidation, which holds colour and delays fat rancidity.

PET-PE
PET-EVOH-PE
OPA/PE
PA-PE

Non-barrier PE bags

Single-layer or simple-structure polyethylene. For short shelf life, frozen goods and secondary packing, where an oxygen barrier is not needed and there is no reason to pay for one.

LDPE
HDPE
CCP
OPP
PE/PE

Bag constructions and dimension ranges

The dimensions the bag range sheet prints. Thickness is given as an upper bound, not as the only thickness available.

Bag constructions and dimension ranges

Bag constructions and dimension ranges
Construction	Thickness up toµm	Widthmm	Lengthmm	Features
Three-side-seam bag3SS	≤ 200	150 – 700	180 – 1,050	tear notch · Euro-slot hole or handle · flexo up to 8 colours
Two-side-seam bag2SS	≤ 200	90 – 610	180 – 700	Euro-slot hole or handle · zip · tear notch · flexo up to 8 colours
Three-side-seam bag with zip3SS + ZIP	≤ 140	150 – 610	180 – 700	tear notch · Euro-slot hole or handle · zip · flexo up to 8 colours
Doypack, round bottom, laminatedDOY-PAC	≤ 140	130 + 40 175 + 40 200 + 40 220 + 40 335 + 60 450 + 60	200 – 600	Euro-slot hole or handle · zip · tear notch · laminated · flexo up to 8 colours
Stand-up pouch, straight bottomPA/PE	≤ 140	150 – 610	180 – 600	Euro-slot hole or handle · zip · tear notch · flexo up to 8 colours

The sheet prints the doypack width as discrete “width + bottom” pairs, so they are reproduced as printed and never merged into a span. Flexographic print up to 8 colours is available on every construction.

Bag materials

VAK-M PA/PE: from 65 µm
VAK-S (PA/PE): sterilisable to 121 °C · 90 µm and 120 µm
PET + LDPE: doypack lamination
PET + PE/EVOH/PE
OPA + LDPE: doypack lamination
OPP + LDPE: doypack lamination
MDOPE + LDPE/EVOH/LDPE · MDOPE + LDPE: recyclable

The thicknesses the sheet prints: 70, 80, 85, 90, 110, 120 and 140 µm. That sheet sets its product types and its thicknesses as two separate lists rather than a linked table, so which thickness belongs to which construction cannot be read off it. Thickness is confirmed against your enquiry.

DOY-PACK · 176 × 240 + 40 mm

A laminated doypack with a zip, a Euro-slot hanging hole and a tear notch. It is the one bag specification recorded on an actual supply document, in two print designs.

The one bag specification in the record

Type: DOY-PACK
Material: PET + PE
Nominal thickness: 90 µm
Measured thickness: 0.089 mm± 10 %
Dimensions: 176 × 240 + 40 mm
Colour: Clear
Grammage: 85.44 g/m²
Features: zip · Euro-slot hole or handle · tear notch
Welding temperature: 130 – 160 °C
Print: flexographic, a separate print plate per design
Compliance: (EU) No 10/2011 · (EC) No 2023/2006 · (EC) No 1935/2004

Dimensions, gauge, seal type and pack quantity per case are set against the product and the vacuum equipment in use.

04 / 06CNT

Containers and lids

Three series, for three different product heights and three different opening habits. In practice the choice comes down to whether the product rises above the rim, and whether the customer has to reclose it.

Applications

Bakery, confectionery, dairy, salads, sauces, prepared meals.

Bakery containers · BC001–BC006

For baked goods and confectionery. Fragile products need a rigid base and a lid that does not press on the surface. The series covers sizes from single items to multipacks.

Showing 6 of 6

Bakery containers · BC001–BC006
	mm	mm	Material
BC001	200 × 110	30	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 30 mm · 1.18 in Source p. 6
BC002	200 × 110	30 / 48	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 30 / 48 mm · 1.18 / 1.89 in Source p. 6
BC003	200 × 110	51 / 31	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 51 / 31 mm · 2.01 / 1.22 in Source p. 6
BC004	200 × 110	48 / 51	APET
Size 200 × 110 mm · 7.87 × 4.33 in APET 48 / 51 mm · 1.89 / 2.01 in Source p. 6
BC005	245 × 155		APET
Size 245 × 155 mm · 9.65 × 6.10 in APET Source p. 6
BC006	324 × 130	30 / 30	APET
Size 324 × 130 mm · 12.76 × 5.12 in APET 30 / 30 mm · 1.18 / 1.18 in Source p. 6

Where a depth is printed as two figures either side of a slash, it is reproduced exactly as the catalogue prints it. The catalogue does not state what each figure represents, and neither do we.

Flat-lid containers · FL001–FL006 · 250 ml–1 L

Six volumes from 250 ml to 1 litre. The flat lid allows stacking in the warehouse, in transport and on the shelf, which suits dairy, salads, sauces and prepared meals.

Showing 6 of 6

Flat-lid containers · FL001–FL006 · 250 ml–1 L
	ml	mm	mm	Material
FL001	250	120 × 115	45	PP · APET · PET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 250 ml · 8.5 fl oz PP · APET · PET 45 mm · 1.77 in Source p. 7
FL002	375	120 × 115	63	PP · APET · PET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 375 ml · 12.7 fl oz PP · APET · PET 63 mm · 2.48 in Source p. 7
FL003	500	130 × 125	63	PP · APET · PET
Size 130 × 125 mm · 5.12 × 4.92 in Capacity 500 ml · 16.9 fl oz PP · APET · PET 63 mm · 2.48 in Source p. 7
FL004	500	191 × 127	46	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 500 ml · 16.9 fl oz PP · APET · PET 46 mm · 1.81 in Source p. 7
FL005	750	191 × 127	56	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 750 ml · 25.4 fl oz PP · APET · PET 56 mm · 2.20 in Source p. 7
FL006	1,000	191 × 127	75	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 1,000 ml · 33.8 fl oz PP · APET · PET 75 mm · 2.95 in Source p. 7

Dome-lid containers · DL001–DL006

A raised lid for products that sit above the rim – cakes, pastries, dressed salads, fresh produce. The dome keeps the top of the product clear of mechanical contact and leaves it visible.

Showing 6 of 6

Dome-lid containers · DL001–DL006
	ml	mm	mm	Material
DL001	250	120 × 115	55	APET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 250 ml · 8.5 fl oz APET 55 mm · 2.17 in Source p. 8
DL002	375	120 × 115	73	APET
Size 120 × 115 mm · 4.72 × 4.53 in Capacity 375 ml · 12.7 fl oz APET 73 mm · 2.87 in Source p. 8
DL003	500	130 × 125	73	APET
Size 130 × 125 mm · 5.12 × 4.92 in Capacity 500 ml · 16.9 fl oz APET 73 mm · 2.87 in Source p. 8
DL004	500	191 × 127	56	APET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 500 ml · 16.9 fl oz APET 56 mm · 2.20 in Source p. 8
DL005	750	191 × 127	70	APET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 750 ml · 25.4 fl oz APET 70 mm · 2.76 in Source p. 8
DL006	1,000	191 × 127	75	PP · APET · PET
Size 191 × 127 mm · 7.52 × 5.00 in Capacity 1,000 ml · 33.8 fl oz PP · APET · PET 75 mm · 2.95 in Source p. 8

336B580 × 390 × 190 mm

05 / 06BOX

Corrugated boxes

Corrugated board is sourced from DS Smith Packaging Lithuania, a manufacturer whose fibre carries FSC certification. The job of the carton is not the pack – it is the load: how much it holds, how often it is handled, and in what conditions it is stored.

Applications
Meat blocks, raw material, frozen product, retail, industrial consignments.

Reinforced transport boxes and containers

Boxes for loads of 1000 kg and above. Used for meat blocks, raw material, frozen product and industrial consignments where the load travels on a pallet and is handled several times. Board grade, wall construction and base design are specified against the actual weight and the storage humidity, not against a standard box. The load a given format carries, and the stacking arrangement it carries it in, are confirmed at enquiry stage rather than published as a single figure.

Corrugated boxes for retail

Transport cases and shelf-ready boxes dimensioned to the pallet module and the shelf. Printing from a single identification mark up to full retail graphics.

Specification

410 × 360 × 120 mm: 336B
460 × 310 × 120 mm: 336B
250 × 120 × 220 mm: 714E
580 × 390 × 190 mm: 336B

The FSC certification is held by the manufacturer. The certificate number and validity are supplied with the shipment where the buyer’s environmental or sustainability documentation requires it.

06 / 06LBL

Labels

The label is the part of the pack that the inspector checks and the customer reads. It has to stay on the surface in cold and damp conditions, and the print has to stay legible for the whole life of the product.

Applications
Identification in cold and damp environments, retail, logistics.

Adhesive labels

The adhesive is selected for the surface and the temperature: chilled condensation, freezer temperatures and a greasy film surface each require a different adhesive. The wrong adhesive lets go at exactly the point where the consignment is already with the customer.

Paper
PE
BOPP
PET
Thermo Eco
Thermo Top
Vellum
Coat

Printed labels

Brand, ingredient, batch and date information. Colours, facestock and lamination are matched to the pack surface and to retail requirements.

Linerless labels

Labels without a silicone liner. They cut waste at the packing line and fit more labels into the same roll diameter, so rolls are changed less often.

Print specification

These requirements govern flexographic print on films, bags and labels alike. They are printed on the technical layout requirements sheet.

Print specification

Print specification
Property	Value
Number of colours	up to 8
Colour profiles	CMYK · Pantone Solid Coated
White and lacquer	on a separate layer
Minimum resolution	300 dpi
Minimum type size	4 pt
Minimum line thickness	0.1 mm
Artwork formats accepted	.pdf · .eps · .ai (CC or earlier) · .cdr (X6 or earlier)

There is no label dimension table here. No self-adhesive label product appears on any supply document from 2023 to 2026, so we have no label size, roll width, core or adhesive class to state. Label dimensions are confirmed against your enquiry.

Industries

In every sector the product fails in its own way

Generic packaging fits nobody. In every sector the product fails in its own way, and the failure mode is what decides the barrier required.

What we supply
	FLMThermoforming and lidding films	TRYThermosealable trays	BAGBarrier and non-barrier bags	CNTContainers and lids	BOXCorrugated boxes	LBLLabels
01Meat and processed meat	What we supply	What we supply	What we supply		What we supply	What we supply
02Fish and seafood	What we supply	What we supply	What we supply		What we supply
03Dairy	What we supply	What we supply	What we supply	What we supply		What we supply
04Bakery and confectionery	What we supply			What we supply	What we supply	What we supply
05Fruit and vegetables		What we supply	What we supply	What we supply	What we supply	What we supply
06General industrial	What we supply				What we supply	What we supply

Not sure which group you need?

Describe the product and how it is packed today. That is usually enough for us to propose a specific material – or to tell you that the one you have is already right.

Send an enquiry

Products

The material is specified against the line

Six groups

Thermoforming and lidding films→

Thermosealable trays→

Barrier and non-barrier bags→

Containers and lids→

Corrugated boxes→

Labels→

One index, five ranges

Thermoforming and lidding films

Structures

PA-PE

APET

EVOH barrier

The two films that recur across the whole record

The film specification register

Lidding films

What we ask before quoting a film

Packoclear

Thermosealable trays · TT001–TT008

Fruit and vegetable trays · FV001–FV003

Further footprints printed in the catalogue

Barrier and non-barrier bags

Barrier bags

Non-barrier PE bags

Bag constructions and dimension ranges

DOY-PACK · 176 × 240 + 40 mm

Containers and lids

Bakery containers · BC001–BC006

Flat-lid containers · FL001–FL006 · 250 ml–1 L

Dome-lid containers · DL001–DL006

Corrugated boxes

Reinforced transport boxes and containers

Corrugated boxes for retail

Labels

Adhesive labels

Printed labels

Linerless labels

Print specification

In every sector the product fails in its own way

Not sure which group you need?

Thermoforming and lidding films

Thermosealable trays

Barrier and non-barrier bags

Containers and lids

Corrugated boxes

Labels
